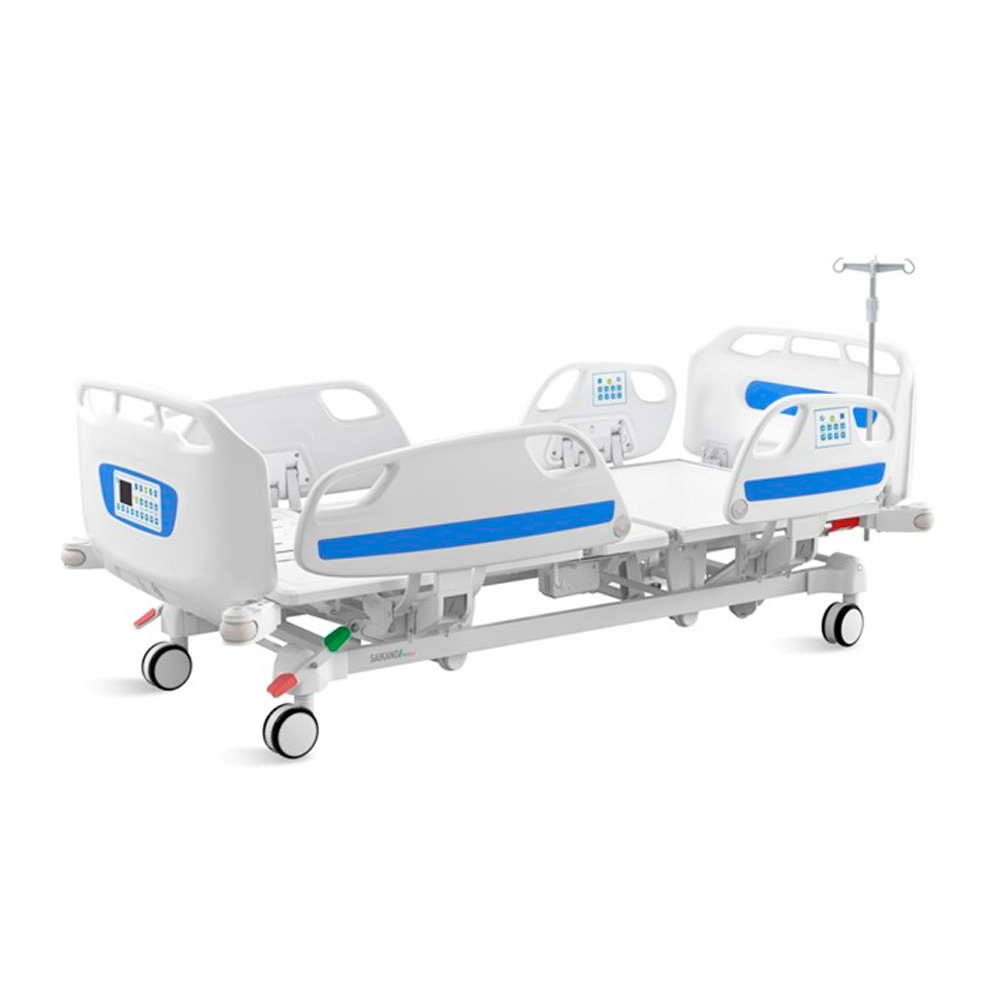

ELECTRIC BED WITH 4 MOTORS (D8D8Y-CPR)
- External dimensions (L×W×H): 2280×1090×435–725 mm ±10 mm
- Mattress platform size (L*W): 1920×900 ±10 mm
- Back section lifting angle: 75° ±10°
- Foot section lifting angle: 35° ±10°
- Bed height adjustment: 435–725 mm ±10 mm
- Reverse Trendelenburg: 12° ±2°
- Trendelenburg: 12° ±2°
Description
- LINAK electric motors: 4 pieces
- Double swivel wheels with central locking: 5”, 4 pieces
- PP plastic side guards with angle indicator: 1 set
- PP plastic headboard and footboard with lock: 1 set
- Integrated control panel with 3.5” LCD screen: 1 piece
- Socket for a trapeze (triangular handle): 2 pieces
- Stainless steel tripod with 4 plastic hooks: 1 piece
- Attachments for the infusion stand: 4 pieces
- Protective rollers (bumpers) Ø85 mm: 4 pieces
- Hooks for the drainage system: 2 pieces
- Manual CPR mechanism (resuscitation reset)
- Emergency stop button
- Central locking of the wheels
- Emergency Battery (Back-up Battery)
