CORONARY CONDUCTORS: BALANCE MIDDLEWEIGHT, WHISPER, PILOT
Coronary guidewires are high-precision 0.014″ guidewires used in percutaneous coronary interventions (PCI) to navigate through stenotic or occluded vessels and ensure precise positioning of balloons and stents.
Depending on the clinical task, guides vary in stiffness, passability, level of support, and coverage.

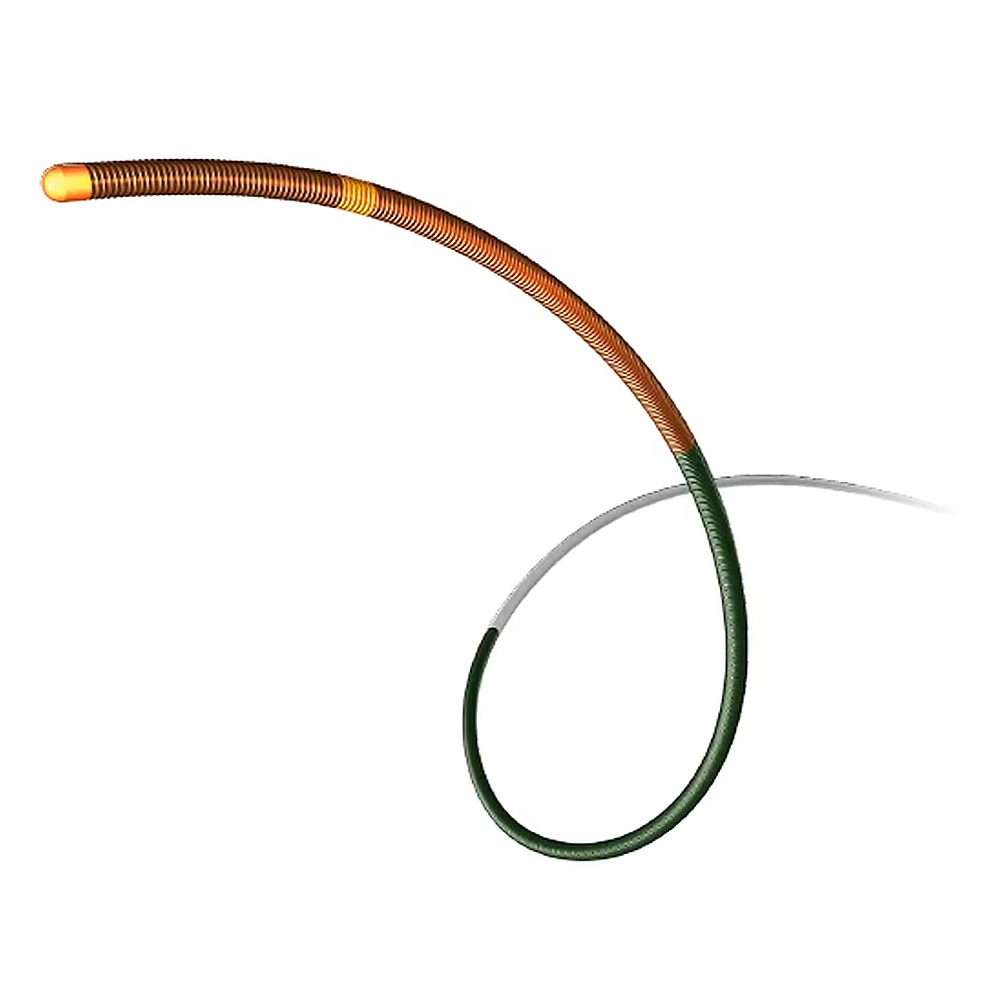

0.014″ Balance Middleweight, Whisper, Pilot coronary conductors
Conduits are designed to accurately navigate lesions in the coronary arteries and provide stable support during the placement of balloons and stents. Available in lengths of 190 and 300 cm. All models are equipped with an X-ray contrasting tip (3 cm) for improved visualization.
Balance Middleweight model with a combined core
- Core: steel + nitinol
- X-ray contrast sheath: platinum-nickel
- Coating: hydrophilic distal
- Support: high (8.7 g)
- Tip stiffness: 0.7 g
- Shape: Straight / J-type
Whisper model with a parabolic core (3 levels of support)
- Core: elastic 304V steel
- Coating: polyurethane with tungsten + hydrophilic
- Support:
• LS — light (3.2 g), 0.8 g tip
• MS — medium (5.0 g), 1.0 g tip
• ES — heavy (14.3 g), 1.2 g tip - Shape: Straight / J-type
A model with a gold Pilot marker
- Core: 304V steel
- Add. marker: gold, 1.5 mm at a distance of 45 mm from the tip
- Coating: polyurethane + hydrophilic
- Support:
• PILOT 50 — 5.9 g, 1.5 g tip
• PILOT 150 — 6.0 g, 2.7 g tip
• PILOT 200 — 5.9 g, 4.1 g tip - Форма: прямой / J-тип
