DIAGNOSTIC CATHETER ANGIOPOINTER
Angiopointer diagnostic catheter, manufactured by APT Medical
Diagnostic catheters are used to visualize the coronary arteries and heart chambers during angiography. They provide precise delivery of contrast material, allowing the doctor to obtain a clear image of the vascular anatomy.
They are made of flexible, biocompatible materials and have high torsional and form stability. Various bending shapes (Judkins, Amplatz, MPA, BERN, etc.) allow for adaptation to different patient anatomical features.
Available in various sizes, lengths, and configurations to meet individual clinical needs.
Angiopointer Hydrophilic Angiographic Catheters
Designed for diagnostic angiographic procedures, providing precise delivery of contrast agent and excellent vessel navigation.

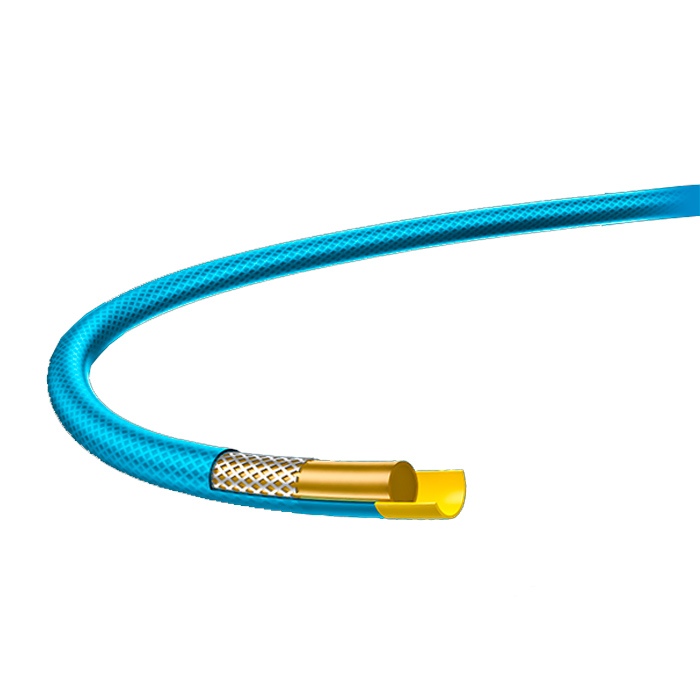

The catheter has a three-layer structure:
- The inner and outer layers are made of flexible polymer
- The middle layer is a metal braid that provides strength, control, and resistance to bending.
- The tip is made of soft polyurethane for атравматичного insertion
- Hydrophilic coating is activated by washing with heparin, reduces friction, and facilitates catheter advancement
Available sizes: 4F, 5F, 6F
Lengths: from 65 to 130 cm
Bend shapes: More than 40 configurations, including JL, JR, AL, AR, SIM, COBRA, PIG, MP, TIG, VTK, Shepherd Hook, Headhunter, and others, are designed to accommodate vascular anatomy for precise catheter positioning.
